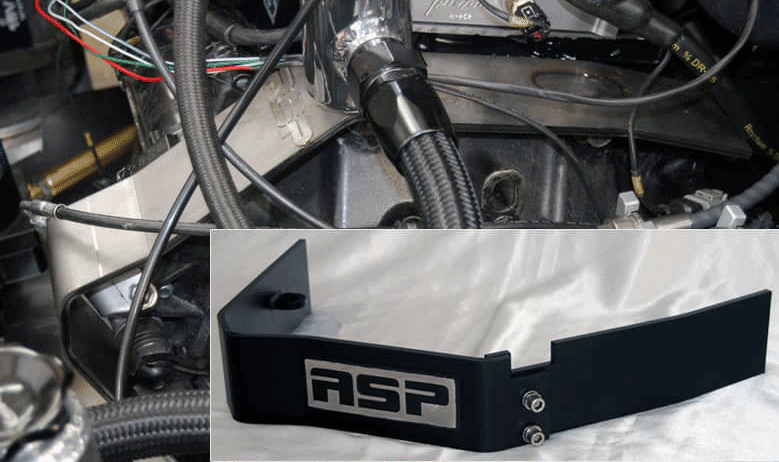

K Series Scatter Shield: Easy install, ASP Header's two piece scatter shield. In the case of an accident, the scatter shield is designed to stop the flywheel from shattering through the vehicles firewall. Designed to fit K20 and K24 transmissions. NHRA required for 11.49 second quarter mile or quicker. Meets all NHRA standards. Made in USA.

HONDA • ACURA

K Series Scatter Shield

POWDER COATED • MILD STEEL

Sandblasted then powder coated satin black for longevity.
Two locking mild steel scatter shield segments.
All stainless steel hardware needed for locking. Socket screws, washers, and lock washers.

Does not clear the often removed stock RSX front mount or heater tube used for AC.

www.nhra.com
SECTION 20 | GENERAL REGULATIONS | 2:10 FLYWHEEL SHIELD: OTHER CLASSES
All front-wheel-drive or transverse-mounted applications using a clutch and running 11.49 or quicker, for which an SFI Spec 6.1, 6.2, 6.3, or 9.1 flywheel shield is not commercially available, must be equipped with a flywheel shield made of 1/4-inch minimum thickness steel plate. Shield must surround the bell housing completely except for area of bell housing adjacent to differential and axle shaft. Shield may be multi-piece, with pieces bolted together using minimum 3/8-inch-diameter Grade 5 or M10 class 8.8 bolts; may be attached to engine and/or bell housing.
